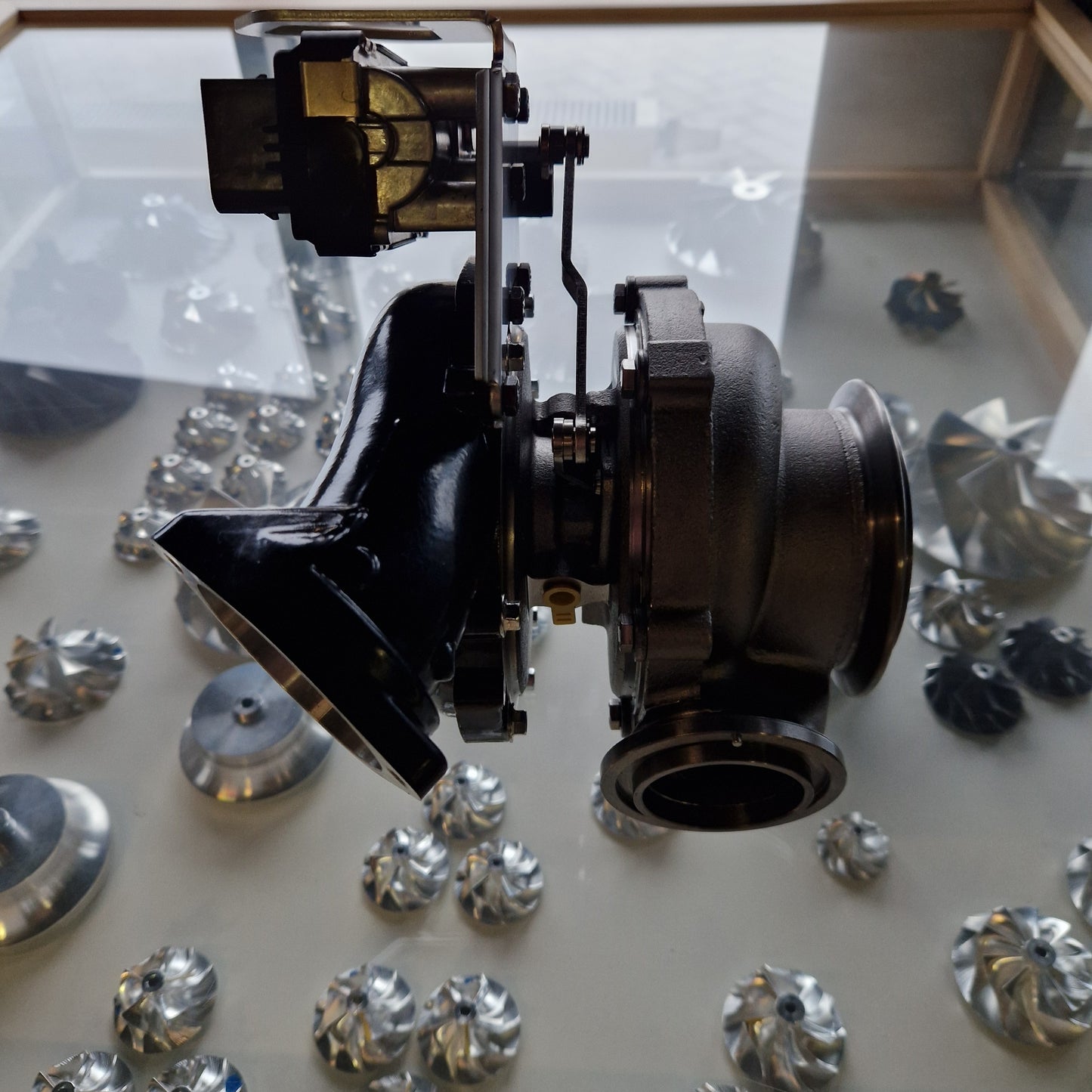

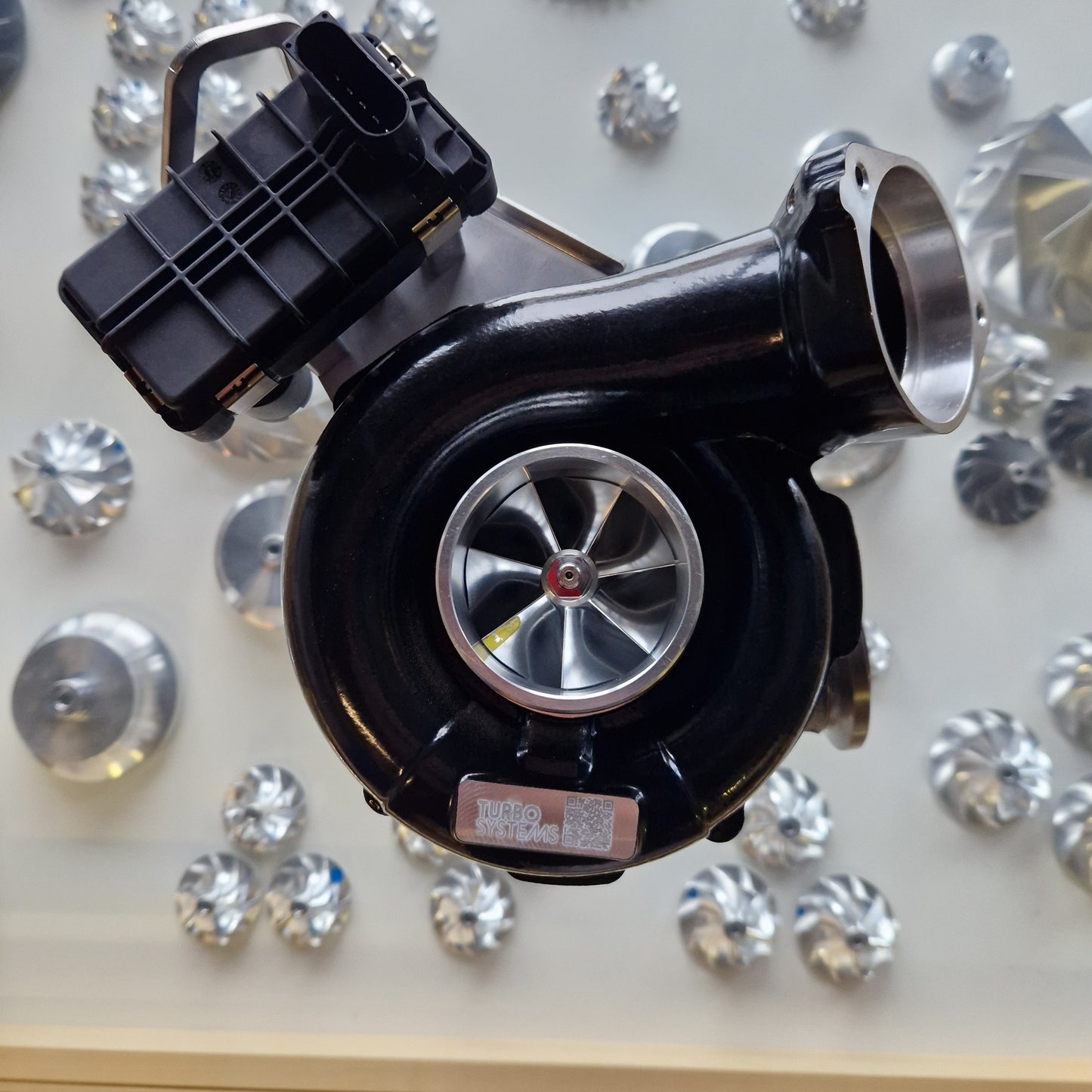

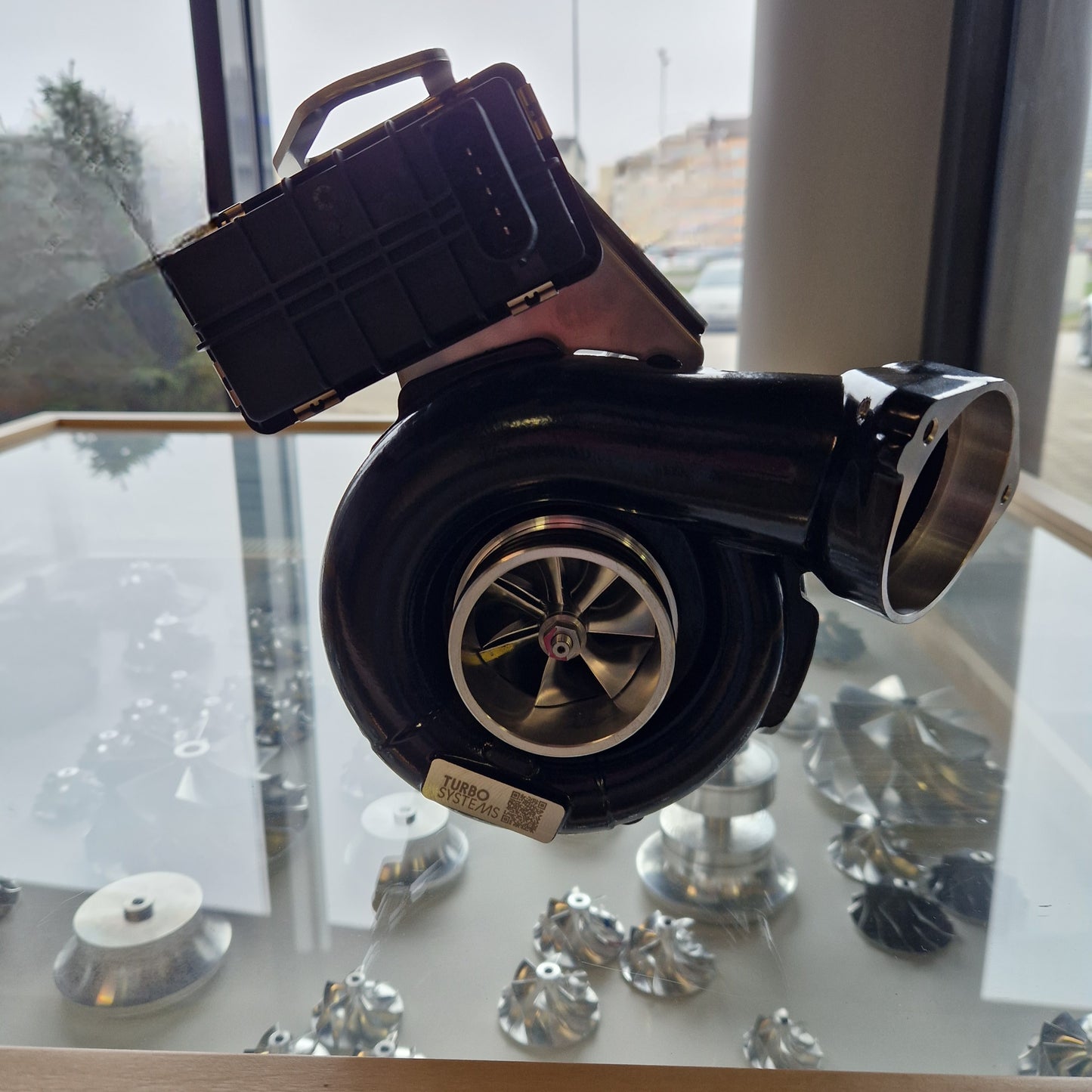

M57N2 upgrade turbocharger TS

Boost your BMW M57N2 engine's power with the bolt-on M57N2 upgrade turbocharger from TS! Designed to work with stock exhaust manifold and other engine units, this solution offers five versions from Stage 2 to Stage 5 for maximum performance. See the specifications and compatibility list below.

Even though below listed models share the same engine the structure of these turbochargers are slightly different. Order turbocharger according to your vehicle.

Stage 2 (HTD2872):

• Upgraded bearing system;
• CNC machined compressor housing;
• CNC machined turbine housing;
• OEM variable geometry nozzle;
• reinforced bigger machined from the solid compressor wheel - 50/72mm;
• bigger turbine wheel - 51/49mm;
• Flow bench adjusted;
• Balanced on VSR;

Power range: up to 400HP

Stage 2 (HTD2872BB):

• dual ceramic ball bearing;
•  CNC machined compressor housing;
• CNC machined turbine housing;
• OEM variable geometry nozzle;
• reinforced bigger machined from the solid compressor wheel - 50/72mm;
• bigger turbine wheel - 51/49mm;
• Flow bench adjusted;
• Balanced on VSR;

Power range: up to 400HP

Stage 3  (HTD3073BB):

• dual ceramic ball bearing;
• CNC machined compressor housing;
• CNC machined turbine housing;
• Custom variable geometry nozzle;
• reinforced bigger machined from the solid compressor wheel - 54/73mm;
• bigger turbine wheel - 58/54mm;
• Flow bench adjusted;
• Balanced on VSR;

Power range: 420+HP

Stage 4 (HTD3279BB):

• Big dual ceramic ball bearing;
• Enlarged shaft (6mm diameter ) and turbine wheel;
• CNC machined compressor housing;
• CNC machined turbine housing;
• Custom variable geometry nozzle;
• Reinforced bigger machined from the solid compressor wheel - 56/79mm;
• High flow design turbine wheel - 58/56mm;
• Flow bench adjusted;
• Balanced on VSR;

Power range: 470+HP

Stage 5 (HTD3379BB):

• Big dual ceramic ball bearing;
• Enlarged shaft and wheel diameter 7mm;
• CNC machined compressor housing;
• CNC machined turbine housing;
• NEW design custom variable geometry nozzle with 14 nozzle blades;
• reinforced bigger machined from the solid compressor wheel - 56/79mm;
•  High flow design turbine wheel - 62.8/56mm;
• Flow bench adjusted;
• Balanced on VSR;

Power range: 500+HP

Please note that with upgrade turbocharger installed you will need engine tuning.

Stage 3-5 turbochargers should be used only for professional use. Upgraded intake system as well as performance downpipe and custom software is required in order to achieve the best results.
