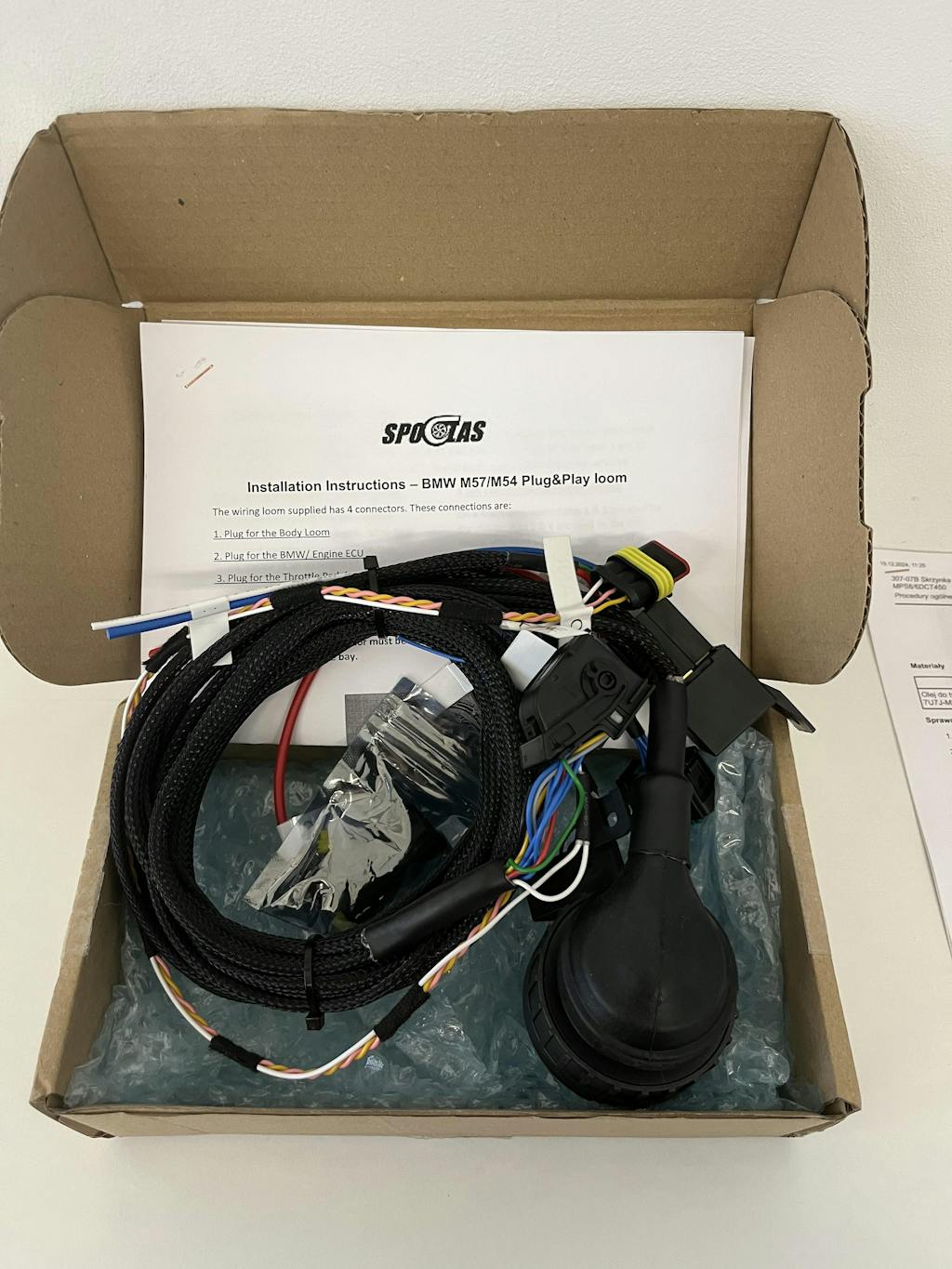

M57 E34/E30/E36 Plug and Play Loom

Plug & Play M57/M57N/M47N loom for the legends! This loom will work with your instrument cluster and other electronics. The only wiring you will have to do is fuel pump, coolant temperature sensor and power supply for the ecu ( only for M57N loom)

M57 loom also works with M54 ecu's.

Specifications:

Oil pressure light;

Alternator light (only for M57 loom);

Tachometer output;

OBDII diagnostic port;

Clutch and brake switch inputs (If needed);

Gas pedal connector.

CAN BUS

CAN Bus interfaces can be used to connect the ecu to the following modules:

Automatic gearbox

VSS Module

Cruise control modules (only for E60, E53 and E90 ECU's)

EKPM modules

CAN GATEWAY modules

If you are using 6HP gearbox from E53 or pre-LCI E60 you should choose CAN BUS + K Line option. 8HP and later Model 6HP-TU boxes only need CAN BUS
